Covalent Supervision

covalent-supervision is an optional module: JavaFX supervision and diagnostics tooling for Covalent, built on top of covalent-core and covalent-hmi. It is not required to build or run a Covalent application - add it to the classpath only when its tooling is wanted.

The module ships as a Covalent extension: nothing in it runs unless explicitly requested through the covalent.extensions system property.

-Dcovalent.extensions=component-viewer

The supervisor observes one managed container at a time, picked in its container selector, and follows it across its lifecycle: when the container is stopping or being disposed, the supervisor disconnects, empties its views and shows the container as Stopped or Disposed; once the container is started again, or a new container is created under the same name, it connects to it again on its own. See Observing Managed Containers.

Its window is organized around a rail of functions, each covered below: Cockpit, Components, Sequences, Dependency Graph, Threads, Exclusions and Settings; Stereotypes is a tab of Settings.

The calls, events and parameter reads a container exchanges are only observed while the Flows switch is on: the live activity on the Components diagram, the Cockpit’s rates, and every Sequences recording all come from these flows. They add a cost to every call of the observed application, small at low rates (see Threads), so they stay off until turned on, from the header or from Settings when connecting.

The supervisor embeds its own user help: the Help entry at the bottom of its rail opens it beside the supervisor, on the function shown (also with F1), and gives the keyboard and mouse shortcuts and the About box. The help is HTML displayed with JavaFX’s WebView, so the module depends on javafx-web. The sections below explain what each function is for and how it relates to Covalent’s model; the embedded help is the exhaustive reference for every control.

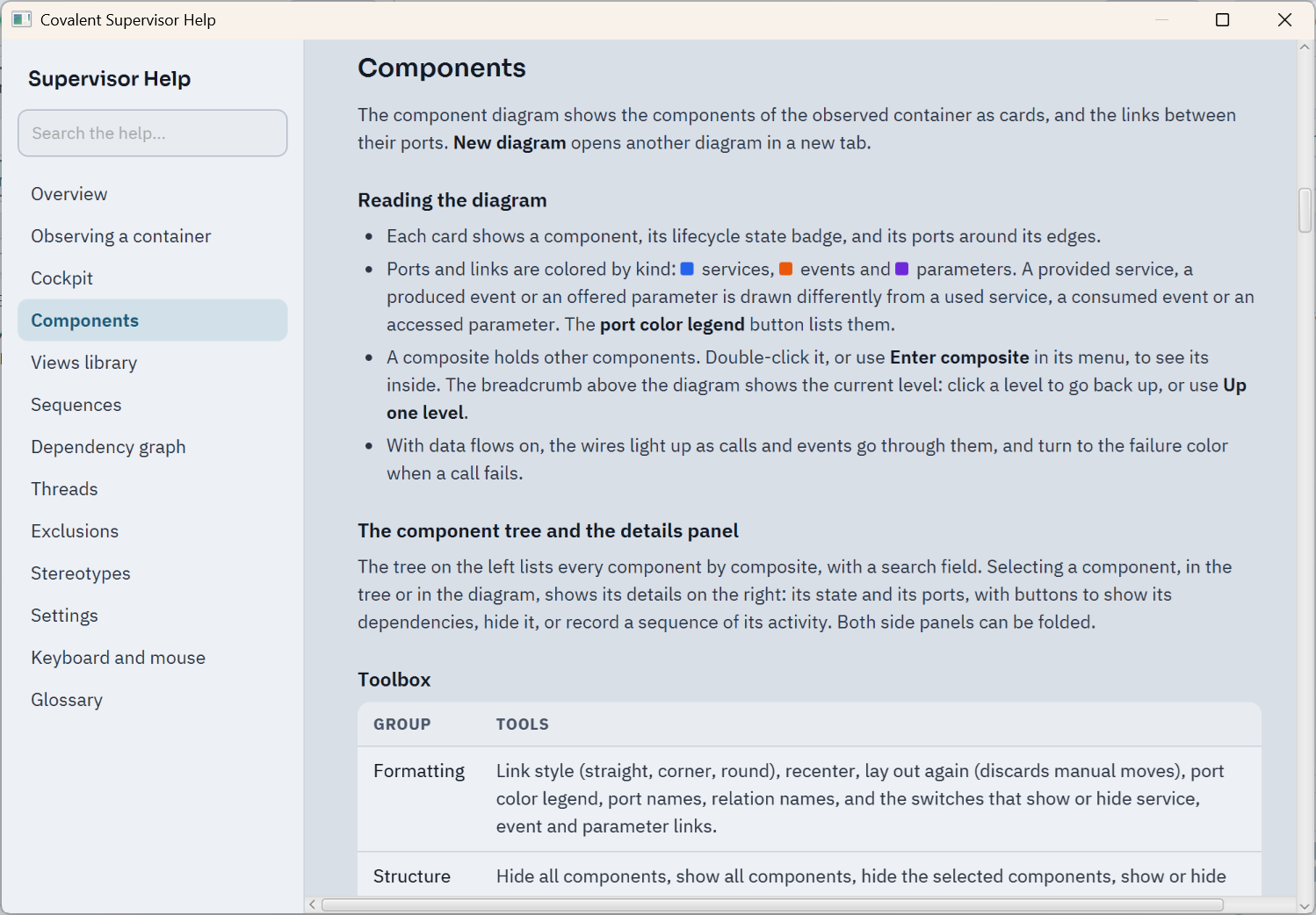

Covalent Supervisor's embedded help, searchable and organized by function

Summoning the Supervisor

The supervisor does not open with the application. It starts the first time it is summoned, at any moment of a long-running application, and it can be shown again as many times as needed after its window has been closed. Two ways to summon it are available as soon as the extension is enabled:

To open the supervisor once, as soon as the first container has started, add -Dcovalent.supervision.startup=open; the default value is dormant, which is also the meaning of any other value. The shortcut and the JMX operation stay available in both modes.

On macOS, the keyboard shortcut and the folder button of the Sequences band use Java’s AWT toolkit next to JavaFX, a combination that is known to misbehave on that platform and that is not verified there. If one of them does, summon the supervisor with the JMX operation and open the logs folder from the file manager.

When the application does not run its own JavaFX toolkit, the supervisor starts one and keeps it running when its window is closed, so that the window can be shown again. The toolkit stops when the container that enabled the extension is disposed, and the supervisor window closes with it. This requires that container to be a managed one (Covalent.main or Covalent.managedContainer(name)); with a container created by Covalent.container(), closing the supervisor window ends the toolkit and the supervisor cannot be shown again.

Cockpit

The cockpit summarizes the observed container, across two tabs.

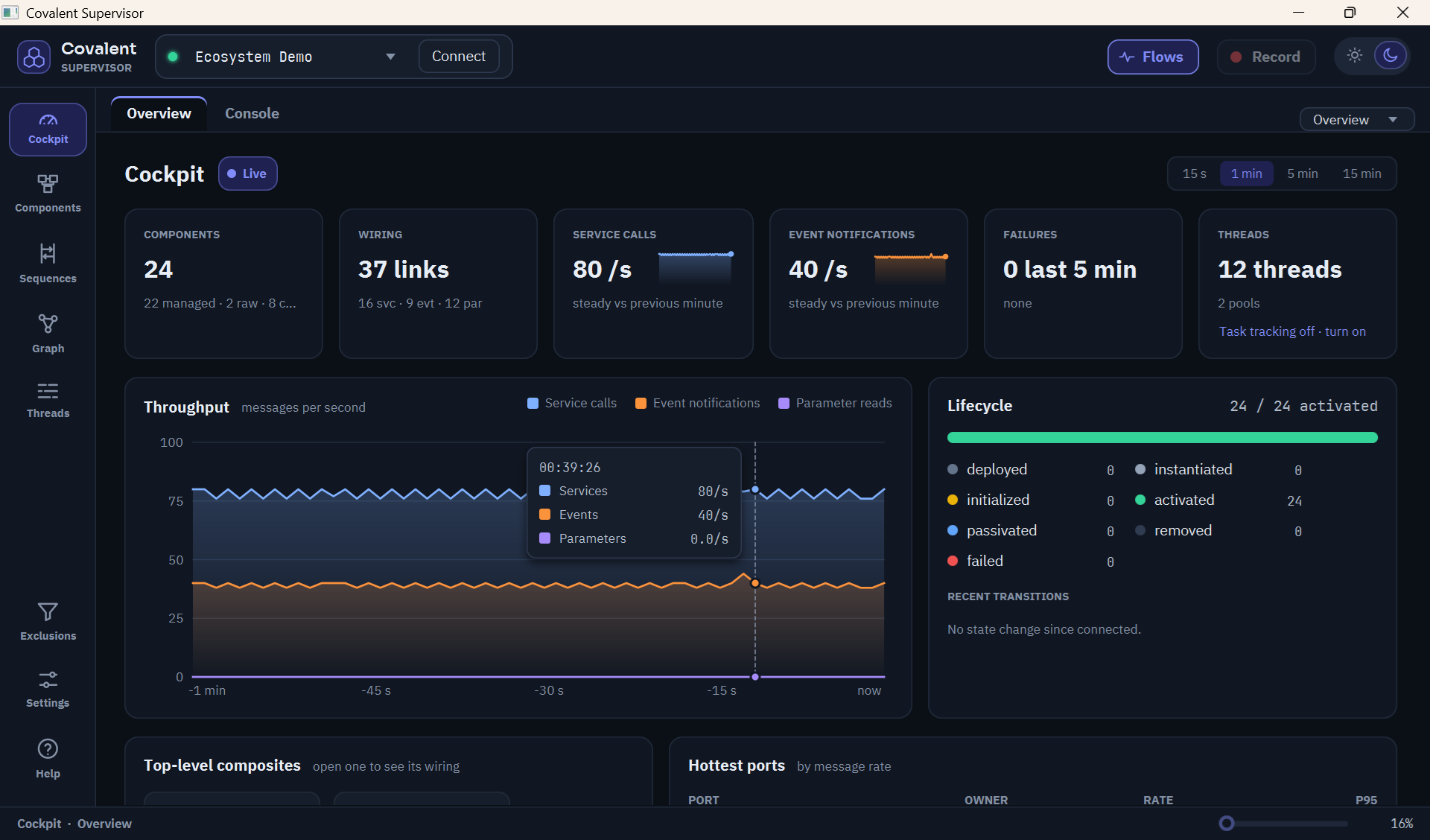

Overview shows live figures: how many components the container holds and how many are composites, the links between components by kind (services, events, parameters), the current service call and event notification rates, the failures over the last five minutes, throughput by kind of message over a chosen window, how many components are in each lifecycle state and its recent transitions, one card per top-level composite, what the worker pools are doing, and the busiest ports. Rates and throughput need the data flows; they stay at zero while the flows are off.

Cockpit: live figures of the observed container

Console drives the lifecycle of the observed components - activate, passivate, restart, remove, undeploy - component by component or for the whole container (Activate all, Passivate all, Remove all), and offers only the commands that make sense in a component’s current state. A component whose transition failed shows the failed state, and only Reset (or Reset all) is offered for it: reset cleans up its composite and brings it back to deployed, without starting it. It mirrors the container’s composite structure: each slice shows the direct children of one level - leaf components, and a composite channel per child composite, with one state dot per component it holds, a switch that applies to the whole sub-composite, and an entry to drill into it. Only slices holding sub-composites are navigable; a breadcrumb and an Up button go back. The Standalone slice gathers the components outside any composite at the level shown. Because these commands act on a running application, the console starts disarmed - Arm enables it, for 60 seconds - and a command with lasting effects asks for confirmation. Covalent’s own internal components are shown but cannot be driven. See Lifecycle for the states a component moves through.

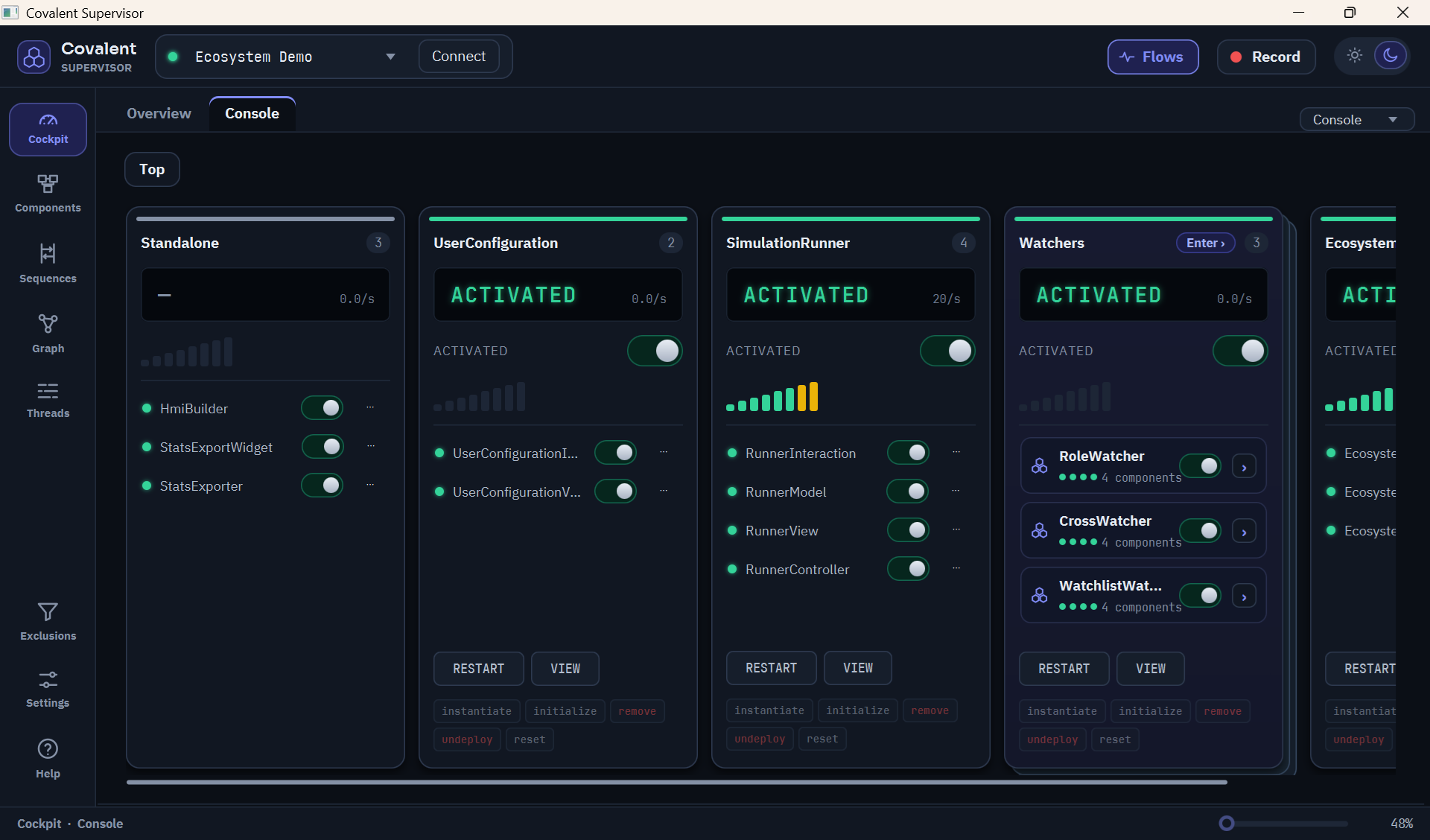

Console: driving components level by level, through composite channels

Components

The component diagram shows the components of the observed container as cards, and the links between their ports, colored by kind - services, events and parameters - with a provided service, a produced event or an offered parameter drawn differently from a used service, a consumed event or an accessed parameter. Selecting a component shows its ports and state in a details panel; with the data flows on, a wire lights up as calls and events go through it, and turns to the failure color when a call fails.

Double-click a composite, or use Enter composite in its menu, to see only its children; the breadcrumb above the diagram shows the current level and goes back up. A port whose link leaves the level shown carries a small navigation badge: it jumps straight to the component at the other end, without losing the current drill-down.

A tree on the left lists every component by composite, with a search field. Selecting a component, in the tree or in the diagram, shows its details on the right, with buttons to show its dependencies, hide it or record a sequence of its activity. A toolbox groups the formatting of the diagram (link style, recentering, layout, port color legend, names, and the switches that show or hide services, events and parameters), the hiding and showing of components and dependencies, and the diagram actions: snapshot, new diagram, save view and views library. Both side panels fold down to a slim strip with the chevron on their inner edge, to leave the whole width to the diagram, and the supervisor remembers which ones are folded.

Components: the component diagram, drilled into a composite

Views Library

A component diagram view - the level shown, the hidden components, the positions, the selection and the zoom - can be kept in the views library:

Components and Sequences tabs can be renamed by double-clicking their title. Renaming a tab opened from a view detaches it from that view: saving it then proposes a new view instead of replacing the old one.

The views are kept in the views folder, set in the supervisor’s Settings (~/.covalent/supervisor/views by default), one sub-folder per container, each view a .cow file (COvalent vieW) with a .png thumbnail beside it.

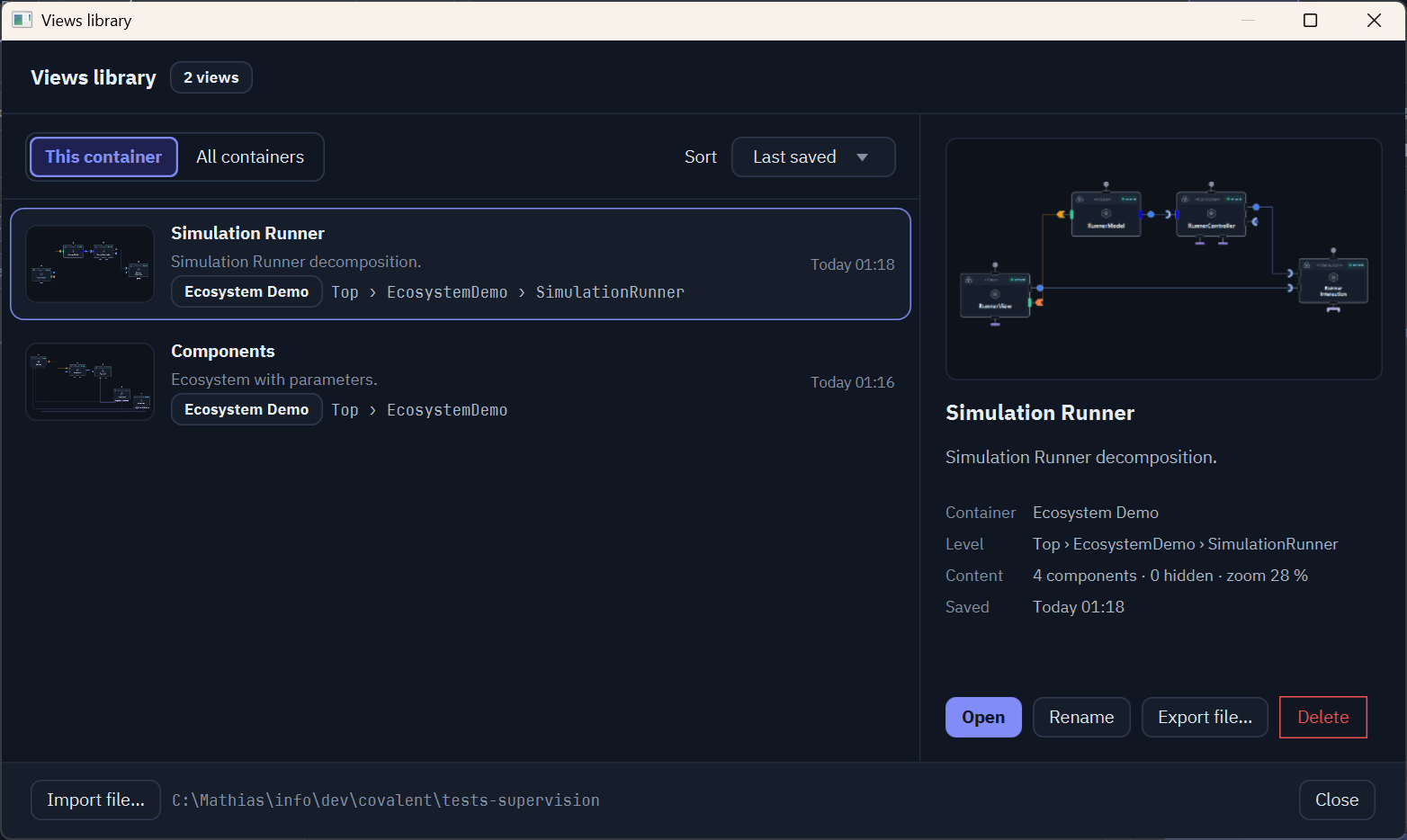

Views library: the saved views of a container, with a thumbnail

Its own UI is built on covalent-hmi’s ActionManager, the same mechanism available to any application - see the Covalent HMI Guide for HmiCore and ActionManager.

Sequences

A sequence diagram records the messages exchanged between components while it runs - service calls and their returns, event notifications, parameter reads and the actions one component triggers on another. A recording needs the data flows on; it starts by selecting one or more components and Record in a component diagram (or from the menu of a link, between its two components), or from a thread in Threads, and goes on until Stop, or Record again from anywhere - one recording runs at a time.

While it runs, Live drawing draws the messages as they arrive - when off, the diagram stays as it is and catches up once turned back on - and Follow live keeps the latest message in view. The kind switches show or hide services, events, parameters and actions.

The timeline covers the whole recording, cut into time slices showing how many messages each slice carried and how long its slowest call took. Clicking a message shows its two ends, its interface and method, its thread, its arguments, its result or failure, and its duration - with, for an asynchronous event, how long it waited in the delivery queue before its consumer was notified, shown apart. The panel on the right that shows these details folds down to a strip, like those of Components. Save the log saves the recorded messages, filtered or not, as text, CSV or JSON Lines, and the folder button beside it opens the logs folder. A setting writes each recording to a file of that folder as it goes, so that the log survives a crash; the settings also give the format and the folder.

A CSV log copies the text of the calls as they were, arguments and failure messages included, and does not neutralize values that start with =, + or @. A spreadsheet opens such a value as a formula, so look at a log that comes from an application you do not trust in a text editor first, or choose the text or JSON Lines format.

Arguments and results are recorded as the text of their toString(), cut to 300 characters, with collections and arrays summed up to their first elements. Nothing is masked: a password, a token or personal data passed to or returned by a call appears in the message details and in the saved logs. Do not record sequences on calls that carry such data, or keep the logs as safely as the data itself.

Sequences: a recording of the calls and events exchanged between components

Dependency Graph

The dependency graph shows which component depends on which, through its ports: a component depends on the components whose services it uses, whose events it consumes and whose parameters it accesses. It is computed each time it is opened, while the container is started, whatever the container parameters. Circular dependency checking only governs the verification made at start - see Circular Dependency Detection.

Composition links join each composite to its children, drawn as UML compositions; a cycle that goes through a composite is one that goes through any of its children, since a composite only starts once all of them have. The Cycles detected panel lists the circular dependencies found, each with its own color on its components and the dependencies that make it, and the Statistics panel gives the number of components, dependencies, cycles and isolated components. The panel on the right, which holds both, folds down to a strip like the component tree.

A large graph can be scoped from the component tree on its left, a panel that folds like those of Components. A click on a composite shows it and all its descendants down to the leaf components, with the dependencies between them; a click on a leaf centers it; the triangle opens or closes a composite without scoping; the breadcrumb above the graph goes back up, to the whole graph. Outside neighbors adds the components outside the scope that they depend on or that depend on them; without it, the status bar counts the dependencies with the outside that are hidden. The cycles and the statistics follow the scope, and each scope keeps its own layout.

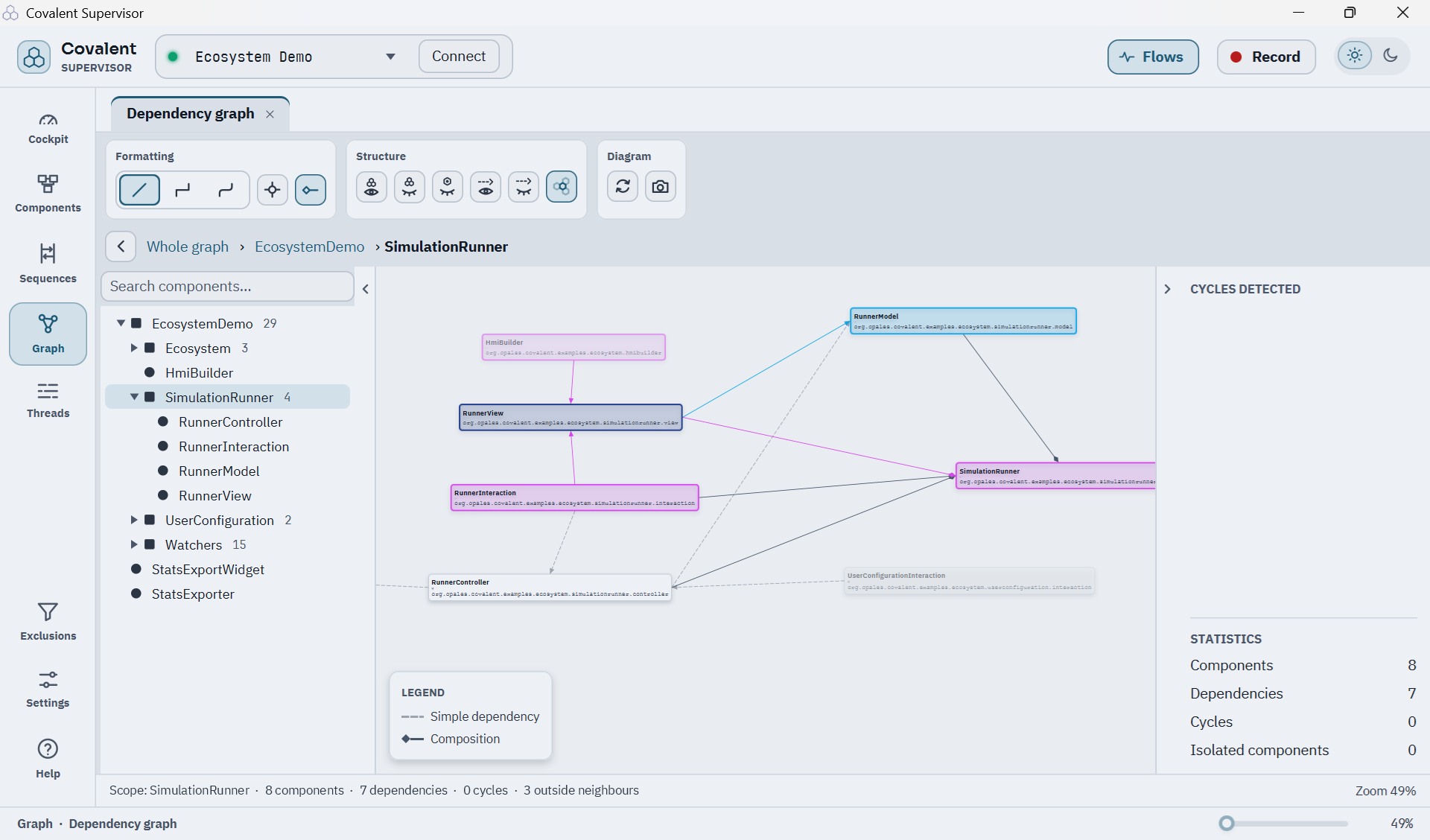

Dependency Graph: components, their dependencies and any cycle among them

Threads

The Threads entry of the rail shows what the observed container’s worker pools are doing: the asynchronous events pool, and the async manager’s general and dedicated pools. It samples them four times a second through EventsWorkersServices and AsyncWorkersServices (see Observing the Worker Pools), and reads each of their threads’ state, lock and CPU time from the JVM. Each thread shows as a lane of its states - runs, waits, blocked on a monitor, idle - on a time axis shared by every lane, under each pool’s queue, occupancy, latencies and contention. The last quarter of an hour is kept; the range selector shows the last 15 seconds, minute, 5 or 15 minutes.

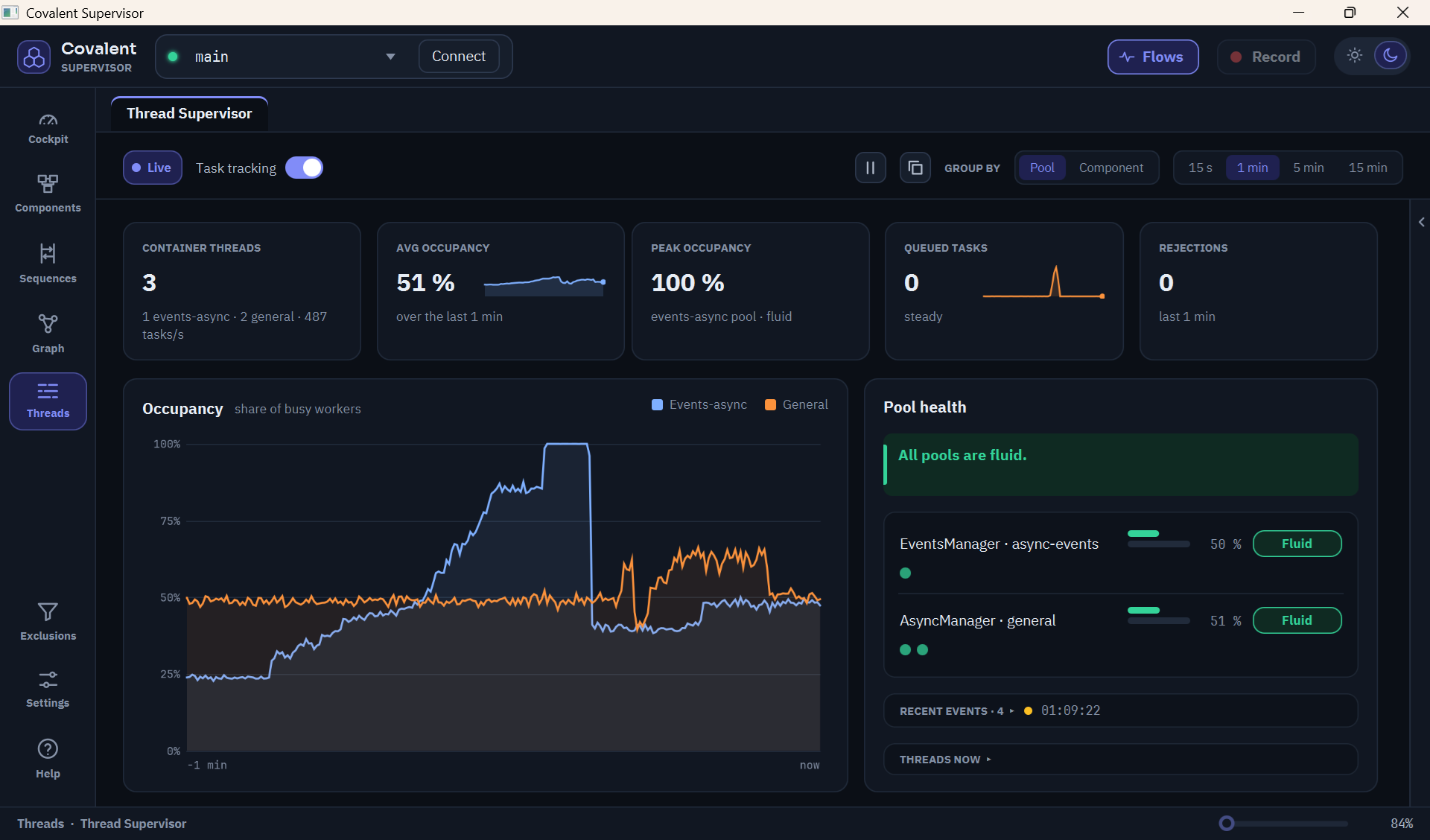

Threads: what the worker pools are doing, lane by lane

With neither option on, Threads shows what a general-purpose JVM tool such as VisualVM shows: the state of each thread over time (running, waiting, blocked on a monitor) and deadlocks. On top of that it knows the container’s worker pools: their workers, queues, rejected tasks and contention, and it can resize them live. What it cannot tell is whether a waiting pool thread is idle or holds a task.

Task tracking asks the pools which task each worker runs and how long tasks wait and run. It is what makes Threads really useful, and it is worth turning on whenever you work with it: it tells a waiting thread from an idle one, names the task on each lane, measures occupancy as a share of time rather than as an instant sample, gives waiting and running times and the load per component, and reports long tasks. It is off until you turn it on, in the panel’s header or from the cockpit’s Threads tile, or with the option of Settings that does it at each connection.

Data flows observe the calls of the whole container. In Threads, they show under Calling threads the application’s own threads that run component calls (a simulation thread, the JavaFX thread), with their call rate, report their long calls, and make it possible to record a sequence from a thread.

Threads feature Without either option Task tracking Data flows
Thread states from the JVM (running, blocked on a monitor) and the lock held yes
Queues, rejected tasks, pool contention, deadlocks, live tuning yes
Pool occupancy instant sample, jumping between 0 and 100 % share of the time spent in tasks
Telling a waiting thread from an idle one no: shown as waits or idle yes
Name of the task a thread runs no yes
Short tasks (green bar) no yes
Tasks per second, 95th percentile of waiting and running times no yes
Group by component no yes
Long task reports blocking on a monitor only tasks of the pools’ workers calls of the calling threads
Calling threads, with their call rate data flows off   yes
Record button grayed out   yes
Components known for a pool worker when recording no yes yes
Cockpit Threads tile threads, pools, saturated pools, rejections, deadlock, and a link to turn tracking on adds the busy percentage over the last minute
Scope   the container’s worker pools the whole container (also the diagrams’ live activity, the cockpit’s rates and the recordings)

Costs. Task tracking costs almost nothing: in our tests it made no measurable difference to the time or the garbage of a task, and the memory it keeps is negligible. Data flows cost much more, because every call between components produces instrumentation events that the supervisor then processes. With the supervisor connected, that is about 7 % of one CPU core at 1,000 calls per second, 14 to 30 % at 5,000 and about 42 % at 20,000. Each call also creates about 5 kilobytes of short-lived objects that the garbage collector must clean up (about 50 megabytes per second at 10,000 calls per second); the memory they keep permanently is small: about half a megabyte in our test container, and it did not grow with the number of calls. A container at rest is not affected. Turn the flows off when you do not need them, especially on code that makes many calls. Recording a sequence adds to this cost, because the arguments of each call are printed and the messages are kept.

With task tracking on, Group by › Component shows the load per component instead of the lanes: a pool’s worker takes any task, so a thread belongs to no component; each component - the one that submitted an async task, or the consumer of an event - gets one row of how many pool workers were busy working for it over time, against every pool’s workers.

While the data flows are on, the panel also shows the application’s own threads that run the components’ calls, such as a simulation thread or the JavaFX application thread, under Calling threads. With a thread selected, the header’s Record button records the last component it worked for, or, once a moment is picked on its lane, the components it worked for then.

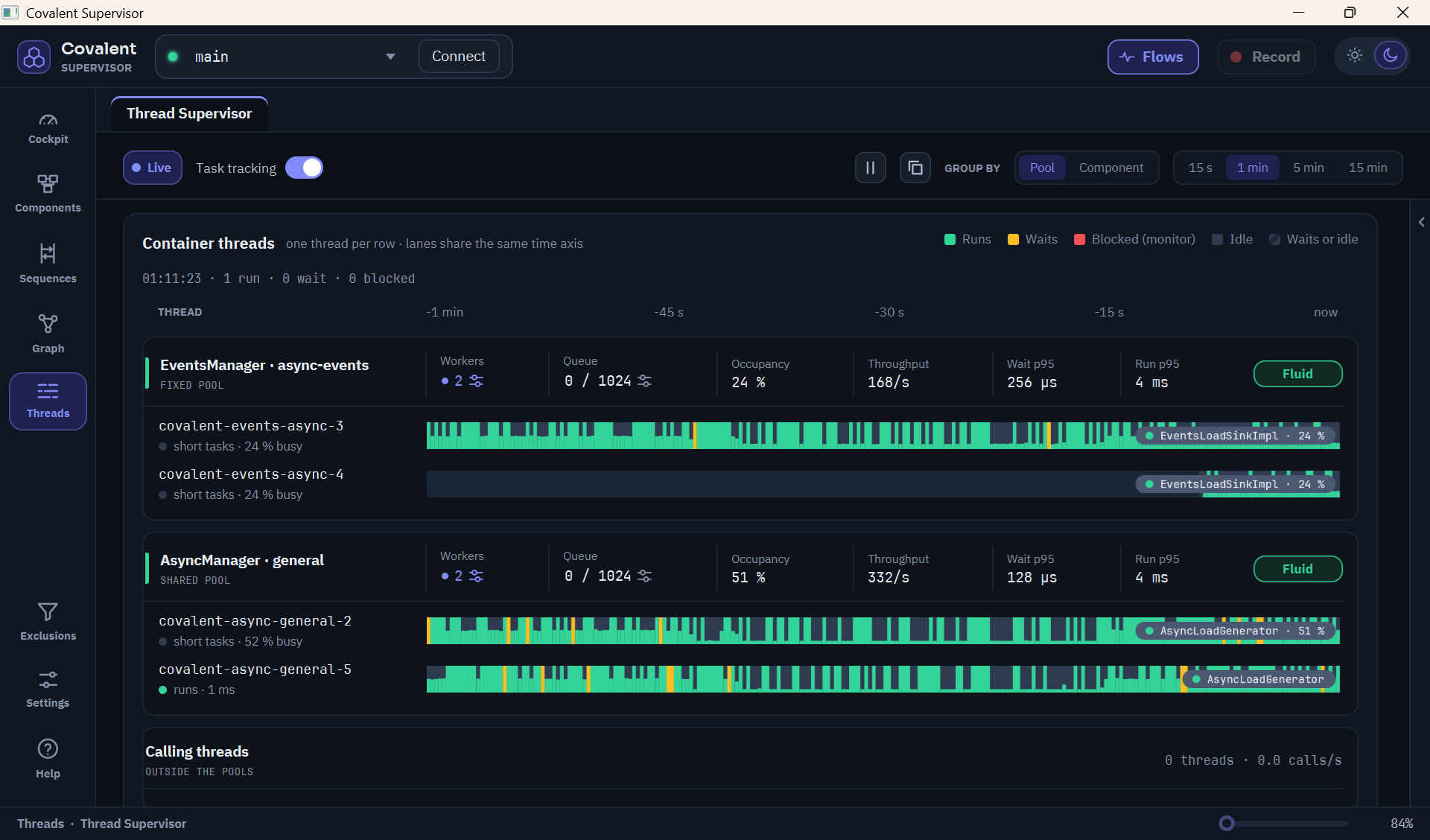

Threads: container thread lanes grouped by pool, with the current task named on each busy lane

The events pool and the general pool can be tuned from their headers: their workers and queue capacity, set through EventsManagerParameters and AsyncParameters, which apply at once. A tuned size lasts until the container restarts, its configuration then applying again, so that a size can be tried before it is configured. Dedicated pools keep their single worker.

A deadlock among the pools’ threads shows as a red banner. A report of each deadlocked thread - its state, the lock it waits for, the locks it holds and its stack - can be copied, and Interrupt threads frees those waiting interruptibly, after a confirmation; a thread blocked on a synchronized monitor can only be freed by restarting the container.

Exclusions

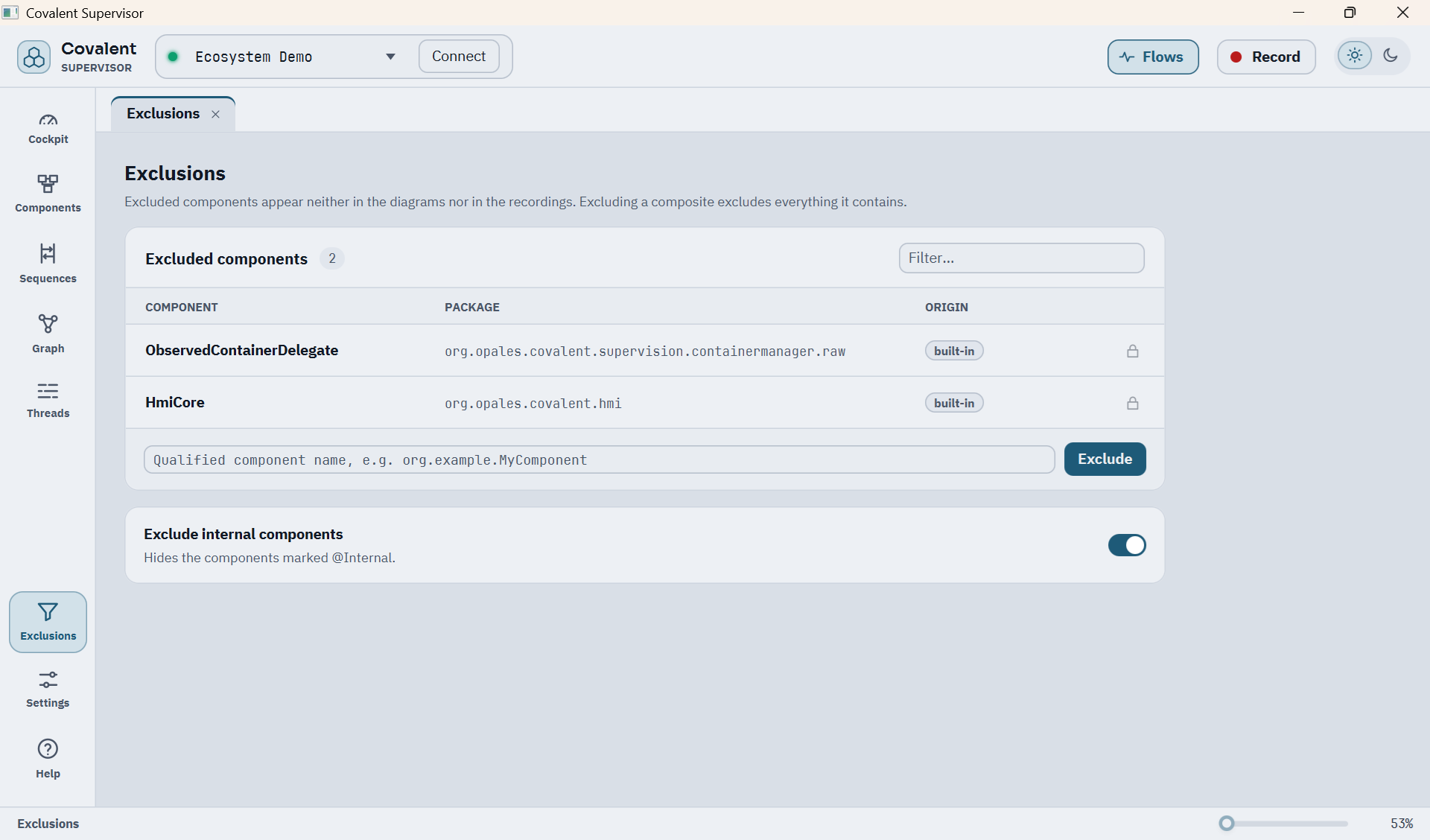

Excluded components appear neither in the diagrams nor in the recordings, and excluding a composite excludes everything it contains. The component of the supervisor’s own interface (HmiCore) is excluded by default, and cannot be removed. A component can be added by its fully qualified name, and removed again. Exclude internal components hides Covalent’s own components marked @Internal; turning it off shows them. Exclusions are kept from one run to the next, including across applications: a component excluded while observing one application stays excluded whenever that application is observed again.

Exclusions: components left out of the diagrams and recordings

Stereotypes

A stereotype is the short label written in a component’s card and in the sequence diagrams, such as Repository or Composite. A component takes the stereotype matching the end of its name - the longest matching ending wins - and, when none matches, the one the metamodel gives it: Composite, Component, Raw, Interface or Internal.

The function has no button on the rail: it is the Stereotypes tab of Settings, also opened by Component stereotypes… in the General tab. The tab lists the name endings and their stereotype. The supervisor ships endings of its own, such as Manager, Model, Store and View, marked built-in; they are locked, unless Allow removing the built-in stereotypes is ticked, and a built-in stereotype that was removed stays removed from one run to the next. Others can be added, each with a name ending (letters, digits, _ and $) and the stereotype to show, which has a length limit; an ending that already has a stereotype is refused. An added stereotype can be removed again, and Restore the initial list brings back the built-in stereotypes and removes the added ones, as at installation. The filter field narrows the list, and Try a component name shows which stereotype a name gets, which ending won and which other endings also match. The stereotypes added or removed are kept from one run to the next.

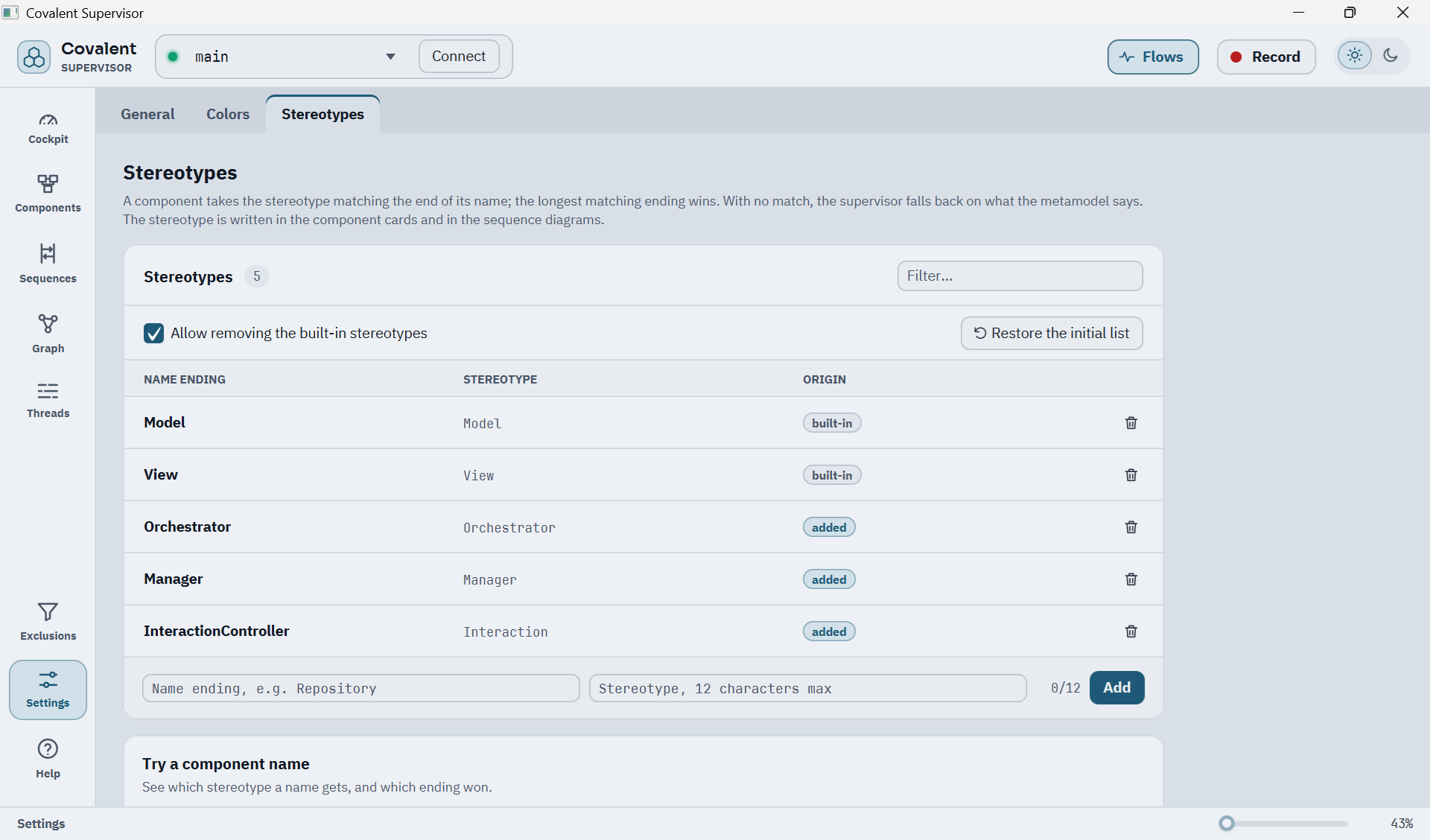

Stereotypes: the table of name endings and stereotypes, in Settings

Settings

Settings has three tabs: General, Colors and Stereotypes.

General sets whether data flows and thread task tracking turn on as soon as the supervisor connects to a container, the threshold for a long task report in Threads, whether the diagram lays itself out again when components are hidden, whether a new sequence diagram starts with live drawing on, how a sequence timeline draws volume and duration together, the snapshot and views folders, and the supervisor’s language: the system language (English when it is neither English nor French), English or French, applied at the next start. The help follows the same language. Its Components card opens the Exclusions function and the Stereotypes tab.

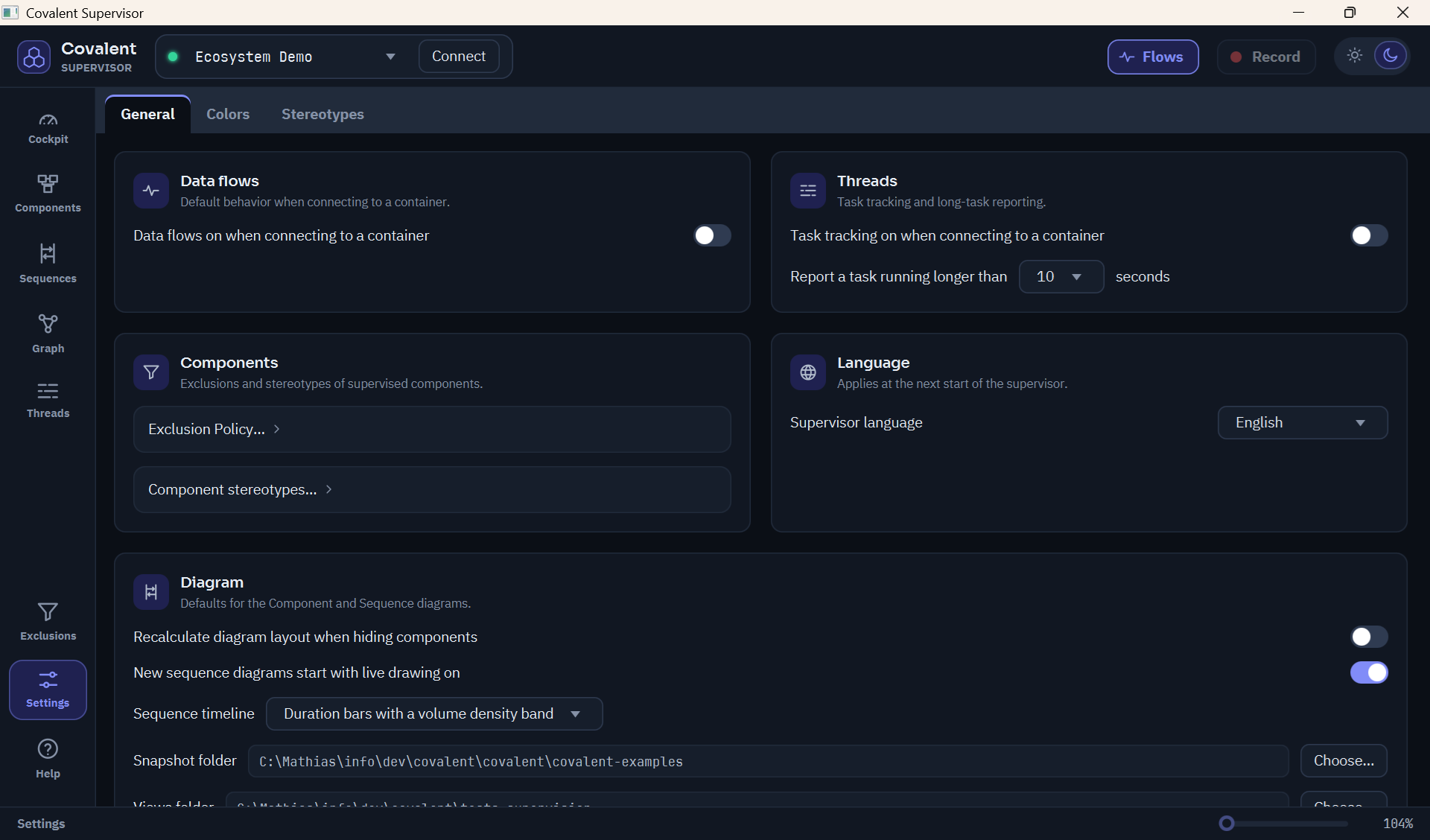

Settings: General

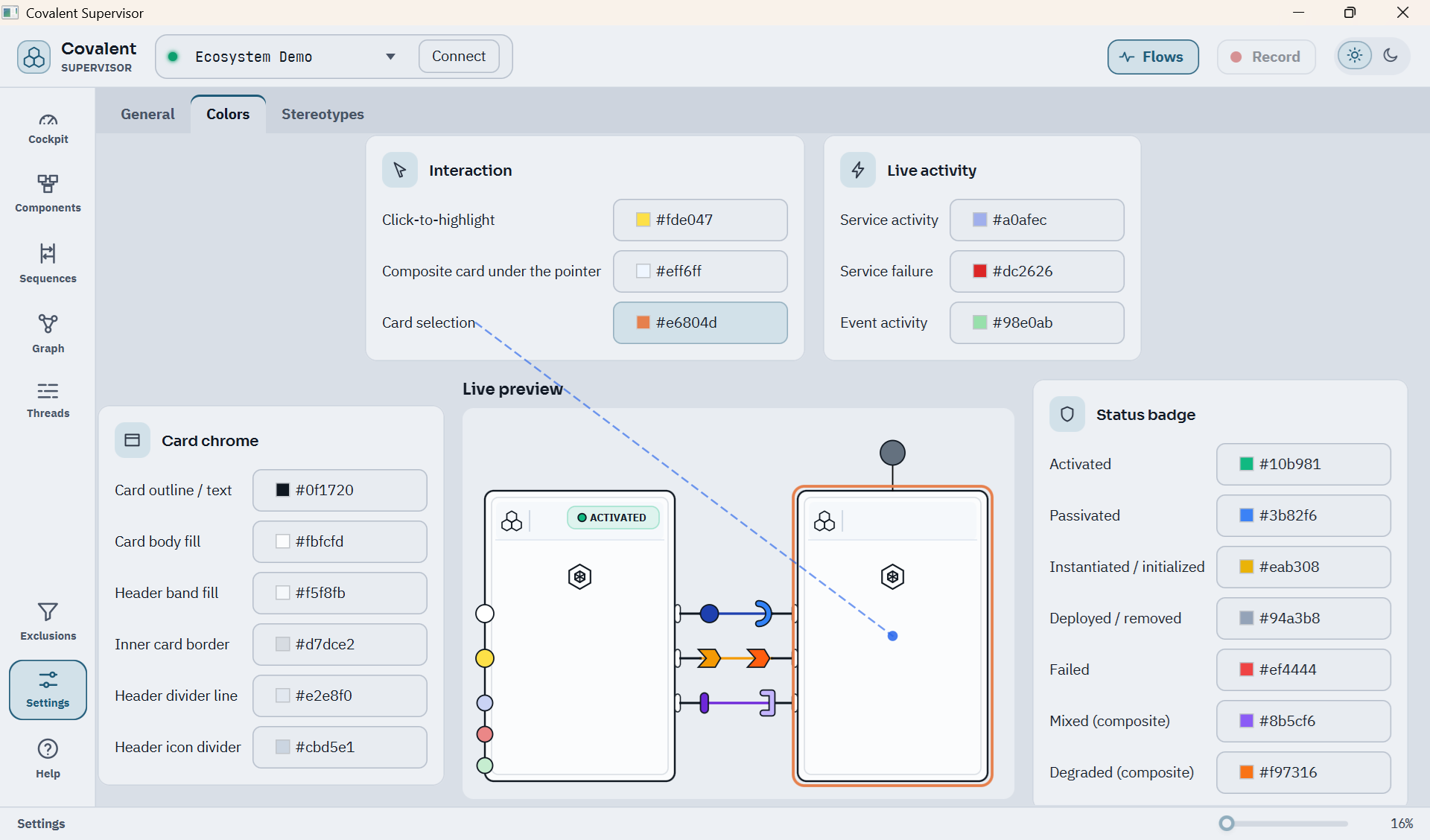

Colors sets the palette used for cards, status badges, ports and wires - one per theme, light and dark - with a live preview; hovering a color shows where it applies. Restore default colors brings back the default colors of the current theme, after a confirmation; the other theme keeps its own.

Settings: Colors, with a live preview

Stereotypes holds the table described in Stereotypes.

The light and dark themes themselves switch from the header, at any time. Every setting is kept from one run to the next.

Writing a Custom Extension

component-viewer is itself an ordinary CovalentExtension - the same public SPI any application can implement to start its own optional runtime tooling alongside a Covalent container. See Writing Your Own Extension for the full walkthrough.

Appendix: Overhead Measurements

These measurements back the costs given in Threads. They are orders of magnitude taken from a micro-benchmark, not guarantees.

Setup. A Linux virtual machine with 2 virtual CPUs of an Intel Core i7-13620H laptop processor and 4 GB of memory, with OpenJDK 21.0.12. The observed container holds one component providing a trivial service, which another caller invokes in a loop. The supervisor’s observation bridge is connected, without the JavaFX interface. Events are asynchronous, as by default. Values are medians taken after a warm-up. On another machine the absolute values change, the proportions much less.

Task tracking. Tasks are submitted to the async manager in batches of 200; the time is the wall time to submit and run one task. Each case ran twice.

  Tracking off Tracking on
Empty task, time per task 1.31 µs and 1.40 µs 1.30 µs and 1.39 µs
Task of 20 µs, time per task 13.1 µs and 13.2 µs 13.0 µs and 13.6 µs
Memory allocated per task 380 bytes 376 bytes

The differences are within the measurement noise, below 5 %.

Data flows. One call of a component’s service by another component.

Situation Calling thread, per call CPU of the whole process, per call Share of one core
Flows off 0.13 µs 0.13 µs
Flows on, no supervisor connected, flat out 0.5 µs 0.5 µs
Flows on, supervisor connected, 1,000 calls/s 16 µs 66 µs about 7 %
Same, 5,000 calls/s 16 µs 28 to 60 µs 14 to 30 %
Same, 20,000 calls/s 15 µs 21 µs about 42 %
Same, 50,000 calls/s 11 µs 14 µs about 68 %
Same, flat out (about 150,000 calls/s) 6.8 µs 7.8 µs a whole core

At low rates each call wakes the thread that processes the instrumentation events, which makes the cost per call higher; the cost per second stays moderate. At 5,000 calls per second the three runs gave 28, 59 and 60 µs of CPU per call, hence the wide range. With the supervisor connected and no call, the process uses about 1 % of a core, with the flows on or off.

Memory allocated per call, with synchronous events
Flows off 64 bytes
Flows on, supervisor connected 4.6 KB
Same, with the call stream of a recording enabled (no consumer) 5.7 KB

These allocations are short-lived objects. The recording figure leaves out the sequence diagram that consumes the stream, whose own cost is not part of this figure.

Memory kept. The heap in use after a full garbage collection, compared with the same container before task tracking and data flows were turned on.

Situation Extra heap
Task tracking on, after 200,000 tasks 24 KB, within the noise
Data flows on, after 1,000,000 calls about 0.5 MB
Same, after a further 200,000 tasks and 1,000,000 calls no further growth
Both turned off again about 0.5 MB: the memory is not released

The test container has a single component. A container with many components, ports or calling threads keeps more, since the statistics are per port and per calling thread; these figures do not cover that.
